Why Room Size Matters
A home theater is only as good as the space it’s built in. The minimum room size determines:
- Screen size compatibility
- Proper speaker placement
- Viewing distance
- Soundproofing efficiency
- Seating comfort
Without enough space, the system cannot deliver true cinematic performance.
Minimum Room Size for a Home Theater
The minimum recommended room size for a dedicated home theater is 12 ft (length) x 10 ft (width) x 8 ft (height). This provides enough room for:
- A 100–120 inch projection screen or large TV
- A 5.1 or 7.1 surround sound layout
- One row of 3–4 recliners
This is the absolute minimum. Anything smaller will feel cramped, distort sound reflections, and reduce viewing comfort.
Ideal Sizes by Layout
- Compact Setup (5.1 system): 12 x 10 ft (120 sq. ft.)
- Medium Setup (7.1 system, dual seating rows): 15 x 20 ft (300 sq. ft.)
- Large Setup (Dolby Atmos, tiered seating): 20 x 25 ft+ (500 sq. ft. or more)
Ceiling Height
A minimum ceiling height of 8 ft is required for acoustic balance. For advanced Atmos setups with overhead speakers, 9–10 ft is recommended.
Viewing Distance Formula
For correct screen size:
- Multiply screen diagonal (in inches) by 1.2 to 1.5.
- That number = optimal viewing distance in inches.
Example: 120-inch screen × 1.2 = 144 inches (12 ft).
This is why room length is critical.

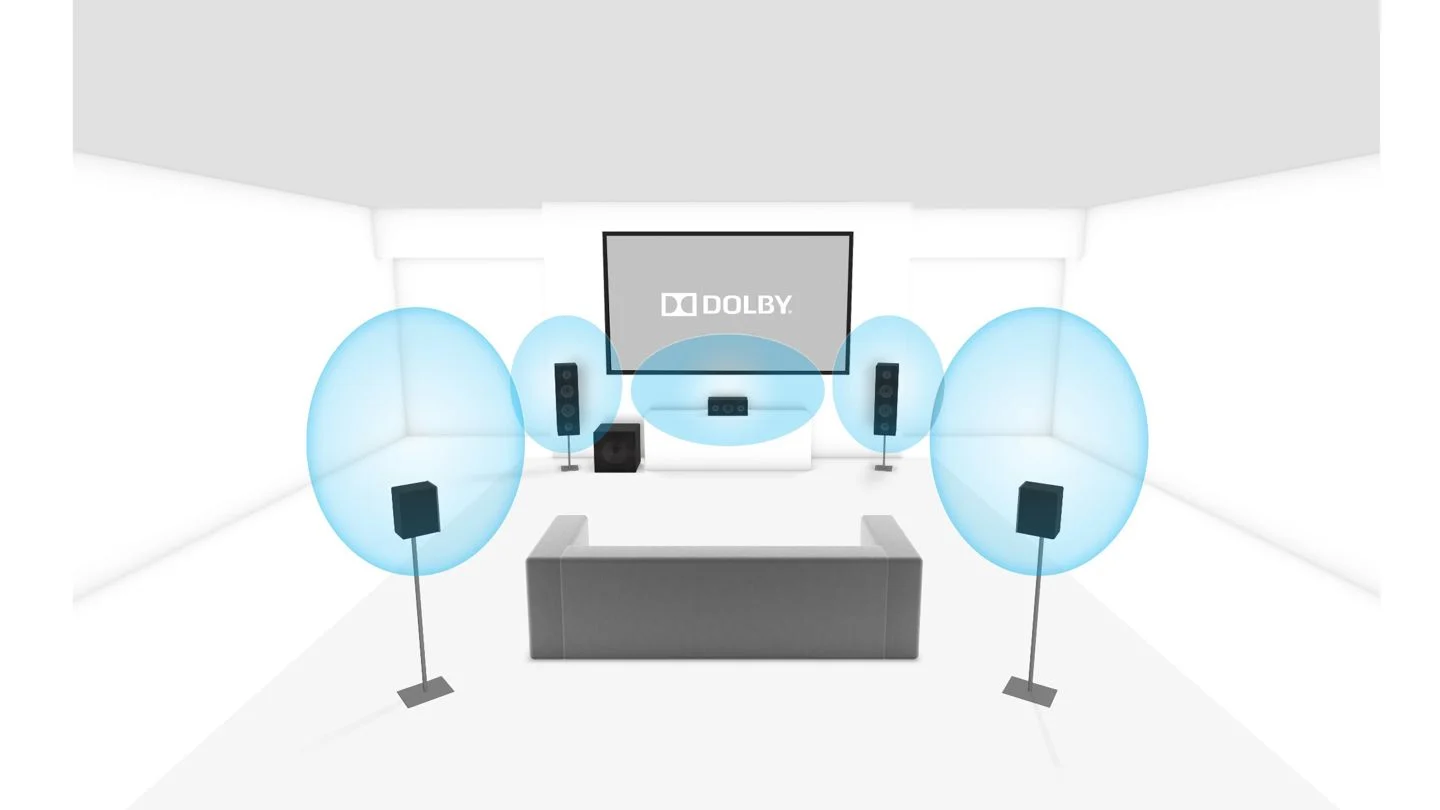

Speaker Placement Needs
- Front LCR speakers require at least 8–10 ft width.
- Side surrounds need minimum 2–3 ft clearance on each side.
- Subwoofers perform best in rooms 12 ft or longer to prevent bass boom.
Acoustics in Small Rooms
Rooms smaller than 120 sq. ft. create:
- Overlapping sound waves
- Bass resonance issues
- Limited speaker positioning options
Acoustic treatment can reduce these problems, but bigger rooms always perform better.
Home Theater vs Living Room Setup
- Dedicated Room (minimum 12 x 10 ft): best for soundproofing, full surround setup, controlled lighting.
- Living Room (minimum 15 x 12 ft): works with compact 5.1 or soundbar system, but not a true cinema experience.
Quick Reference: Minimum Room Sizes
- 5.1 setup: 12 x 10 ft
- 7.1 setup: 15 x 20 ft
- Atmos setup: 20 x 25 ft+
- Ceiling: 8–10 ft
Conclusion
The minimum room size for a home theater is 12 x 10 ft. This allows for proper screen, sound, and seating layout. For premium Dolby Atmos theaters, plan at least 20 x 25 ft with higher ceilings.
Building below these dimensions compromises performance. Always design the room first, then the system.
